Mini High Pressure Needle Valve Gauge Valve Manifold For Natural Gas Metering Stainless Steel Valve

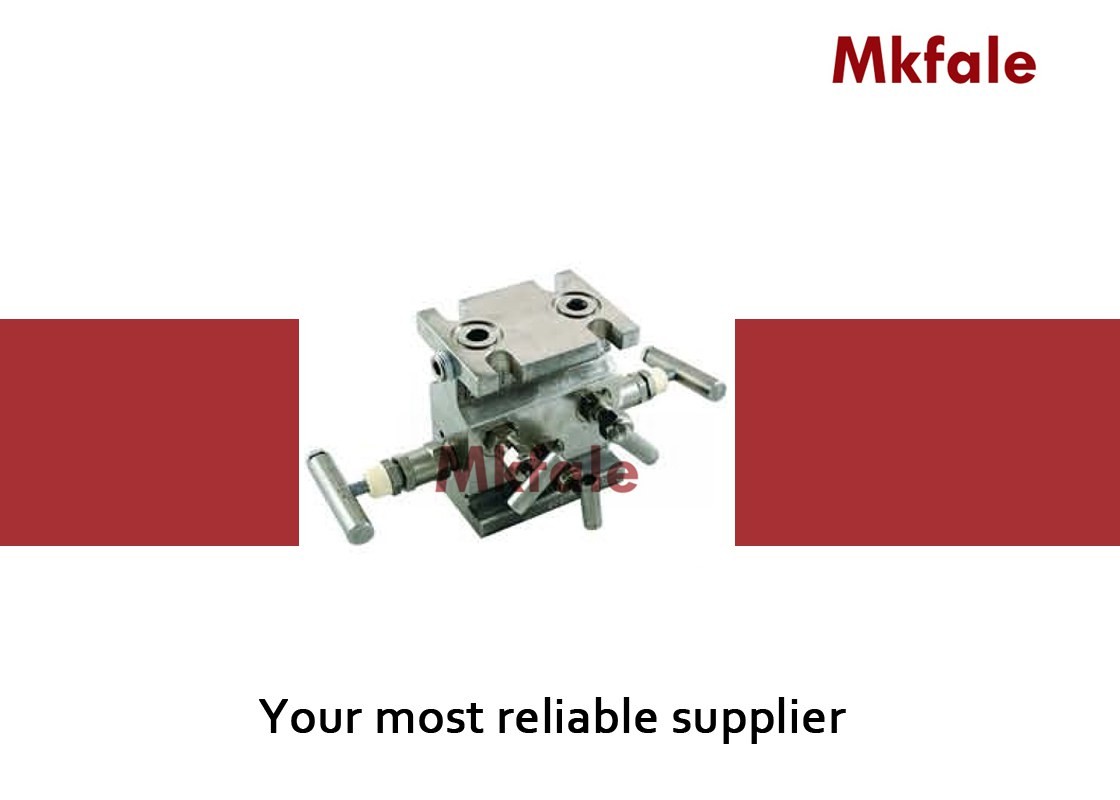

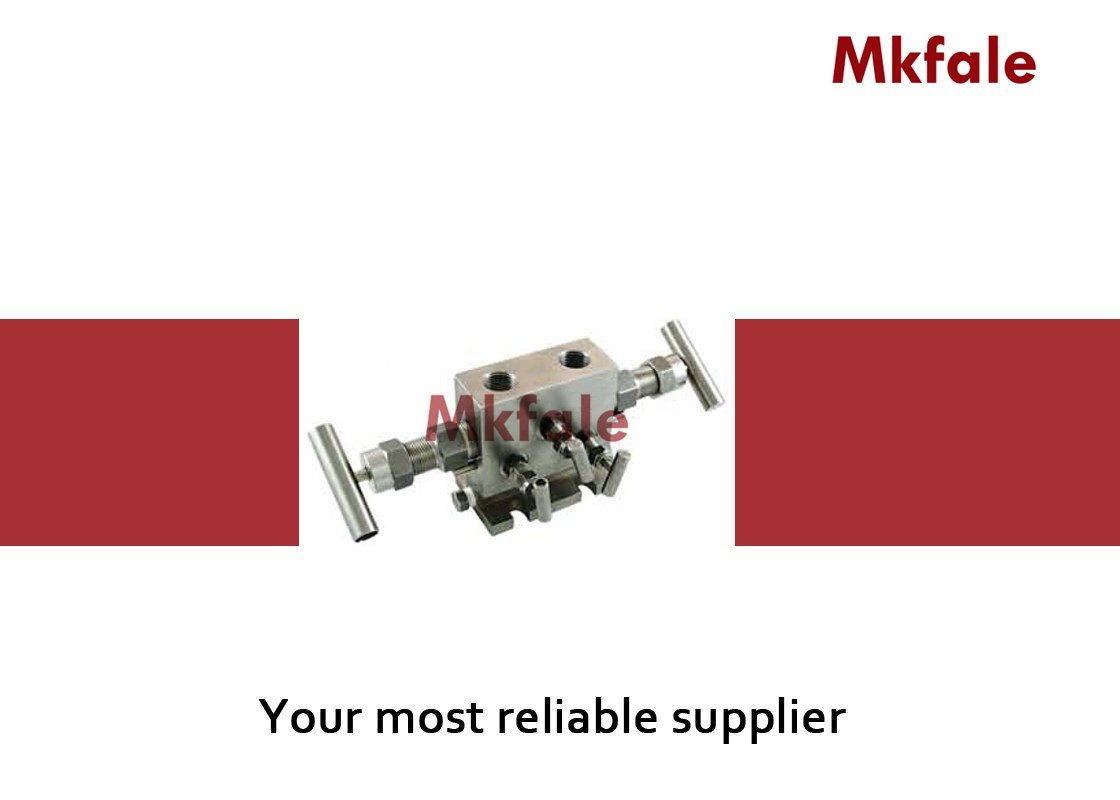

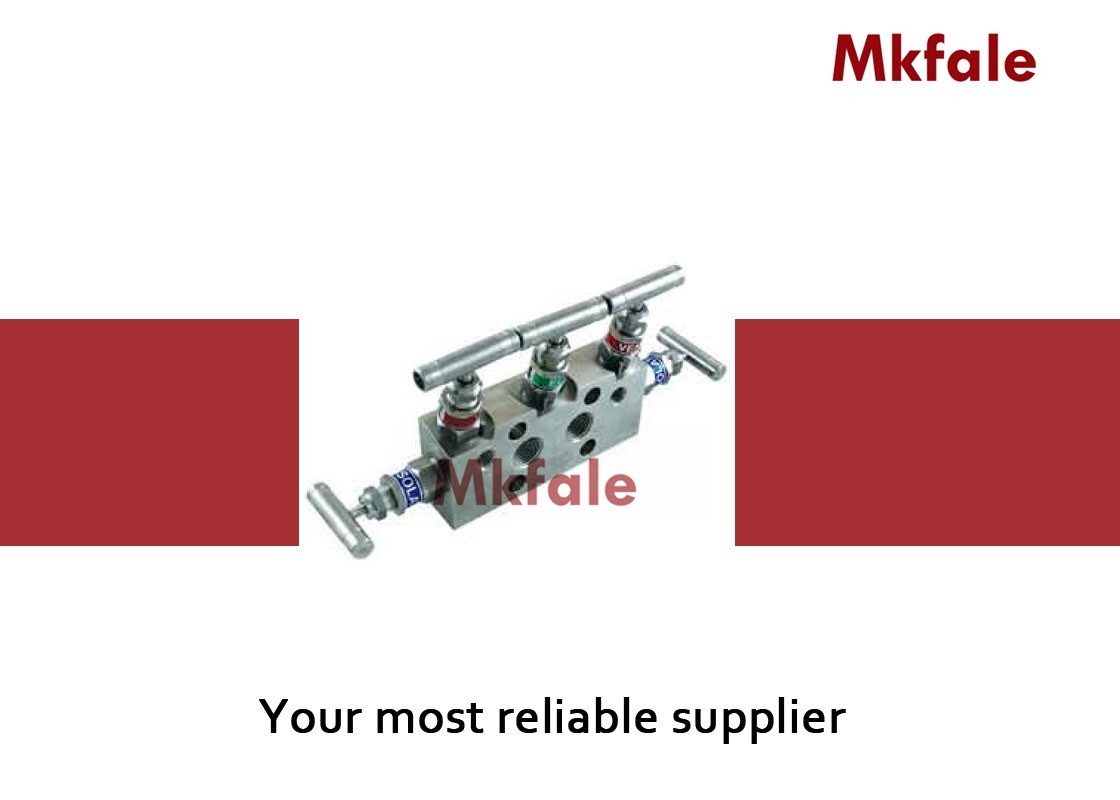

Five manifolds are designed for natural gas application .
The five manifolds consists of two shut off valves , Two equalizing valves and a single vent valve which takes the place of the conventional piped up 5 – valve manifold generally found on field meters or gas service differential pressure instrument .
There are three type five valve manifold . Block type ( R Type ) – pipe to pipe , Single Flange type ( R type ) – pipe to flange and Dual Flange type ( H type ) – flange to flange to flange . To meet the requirements for differential pressure instruments application .
Ordering Information
Gruop Designator ( Valve maniflod )
Manifold Type Designator :
2V - 2 Valve Manifold
3V - 3 Valve Manifold
5V - 5 Valve Manifold
Material Designator :
S4 - SUS304
S6 - SUS316
CS - ASTM A 105
X - Others Material
Body Type Designator :
T - Single Flange Type ,
H - Dual Flange Type ,
R - Block Type
D - DirECT Mounting Type
Packing Designator :
T - PTFE
G - Grafoil
X - Others Material
Stem Type Designator :
B - Ball Tip ,
V - Vee Tip ,
X - Others Type
Connection Designator :
04OD - 1 / 2 " Tube End ,
04N - 1 / 2 " NPT ,
04R - 1 / 2 " PT ,
04G - 1 / 2 " BSPP
P . S . : 1 . The other types of 2 - , 3 - , 5 - valve manifolds are available upon request .
2 . Testing : Each valve is tested with nitrogen at 1000 psi for seat & packing leakage to max . Leak rate of 0 . 1 SCCM or optional hydrostatic test which performed with pure water at 1 . 5 times of working pressure .
3 . All dimensions are mm . Dimensions for reference only - subject to change .
