| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | EP4 |
|
Detail Information |
|||
| Intrinsic Error: | ±1%(single-acting);±1.5%(double-acting) | Output Characteristic: | Linear,Equal Percentage |
|---|---|---|---|
| Hysteresis Error: | 1%(single-acting);1.5%(double-acting) | Temperature: | -35~+60℃-20~+60℃(Intrinsic Safety Type) Ex IaⅡCT6 Gb |
| Dead Band: | 0.2%(single-acting);0.4%(double-acting) | Relative Humidity: | 10%~90% |
| Rated Travel: | 0-(10-100)mm;0-(50°-75°-90°)Angular Travel | Air Pressure: | 0.14~0.7MPa |
| Input Impedance: | 250Q ± 5% (at 20℃) | Input Signal: | 4-20mA.DC;0-10mA.DC(Separable Process) |
| Output Pressure: | 0.02-0.6MPa | Power Interface: | NPT1/2(G1/2) |
| Air Consumption: | Single-acting:5L/min(Gas Supply 0.14MPa) Double-acting:15L/min(Gassupply0.4MPa)) | Shape Material: | Aluminum Alloy |
| Overall Dimensions: | 205×192×78mm | Weight: | 2.1Kg |
| Action Type: | 1 Single Action With Actuator (single-acting) 2 Double Action With Actuator(double-ac Ting) | Accessories: | AS With Correlation Matching Combination Air Filtering Pressure Reducing Valve |
Product Description

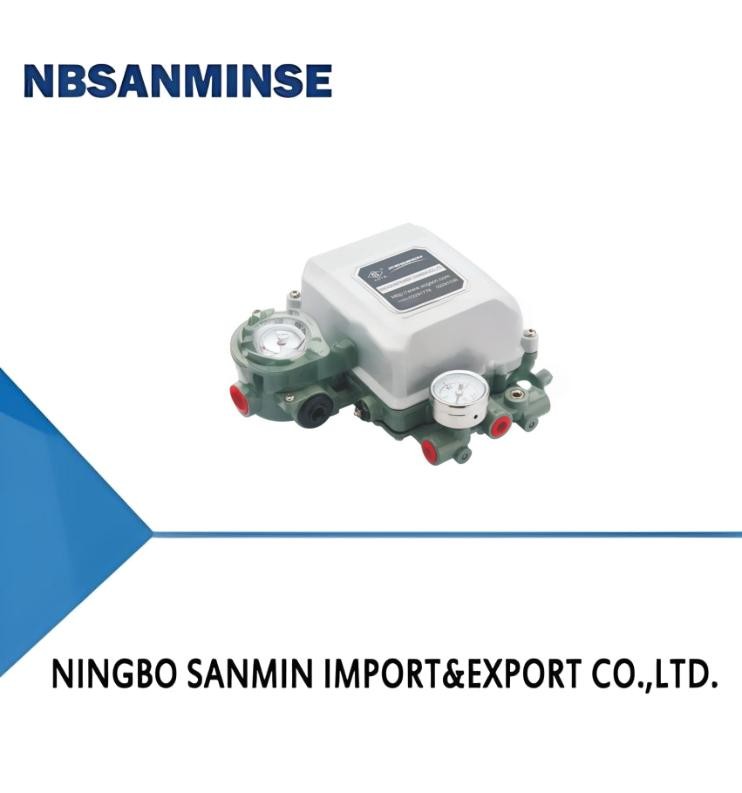

| EP4000 Series electrical and gas valve locator |
|
1.Suitable for small capacity and large capacity of actuators With spring load control,select the corresponding spring after can get the most suitable for the actuator positioner. 2.Small gas consumption Gas consumption is small, large capacity of the amplifier. 3.Can choose the output characteristic Because of the feedback mechanism of CAM device, so you can choose output characteristic features. |
| First, Product Overview EP4000 electricity - gas valve positioner is made in introducing foreign technology. it with the regulator, constitute a closed loop control circuit. The controller output Electrical signal conversion to drive the regulator gas signal, at the same time, according to the control valve to open for position feedback, the regulator can correct positioning. |
| Intrinsic error | ±1%(single-acting);±1.5%(double-acting) | Output characteristic | Linear,Equal percentage | |
| Hysteresis error | 1%(single-acting);1.5%(double-acting) | Environment temperature | -35~+60℃-20~+60℃(Intrinsic safety type) Ex iaⅡCT6 Gb | |
| Dead band | 0.2%(single-acting);0.4%(double-acting) | Relative humidity | 10%~90% | |
| Rated travel | 0-(10-100)mm;0-(50°-75°-90°)Angular travel | Explosion-proof type | (Flame-proof) Ex dⅡBT6 Gb, Ex iaⅡCT6 Gb(Common)Non-Explosion | |
| Air pressure | 0.14~0.7MPa | Input impedance | 250Q ± 5% (at 20℃) | |
| Input signal | 4-20mA.DC;0-10mA.DC(Separable process) | Air supply connection | ZG1/4,φ6 Connect the brass | |
| Output pressure | 0.02-0.6MPa | Power interface | NPT1/2(G1/2) | |
| Air consumption | Single-acting:5L/min(Gas supply 0.14MPa) Double-acting:15L/min(Gassupply0.4MPa)) | Shape material | Aluminum alloy | |
| Overall dimensions | 205×192×78mm | Weight | 2.1Kg | |
| Model |
Explosion- proof grade (protection)structure |
Feedback (action) | Action type | Accessories |
|
EP4 |
1 Flame pr oof d Ex dⅡBT6 Gb |
1 Straight travel Actuators:standard |
1 Single action with actuator (single-acting) |
AS With correlation matching combination Air filtering pressure reducing valve |
| 2 Increase d safety type e Ex dⅡIT6 Gb,IP65 |
2 Quarter- turn actuators:standard |
2 Double action with actuator(double-ac ting) |
||
| 3 Intrinsic safety type I Ex iaⅡICT6 Gb | _____ | _____ | ||
Example: EP3111: said flameproof, straight trip, single functionEP3322: it means the Ann model, Angle, dual role When ordering, please specify:
1, Type; 2, Input signal; 3, Gas supply pressure;4, Output characteristic; 5, With pressure reducer;6, Stroke; 7, The actuator specifications; 8, Output pressure.
