| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | KZ03-1 KZ03-2 KZ03-3 |
|
Detail Information |
|||
| Air Consumption: | 0.95L/min | Gas Supply Pressure: | 1MPa |
|---|---|---|---|
| Filter Degree: | ≤5μm | Temperature: | -30~+70℃ |
| Relative Humidity: | ≤95% | To Take Over The Thread: | Rc1/4 |
| Overall Dimensions: | φ84×190mm | Weight: | 0.7kg |
| Output Pressure (M Pa): | 0.14 (fixed) 0.012-0.35 0.012-0.70 | ||
Product Description

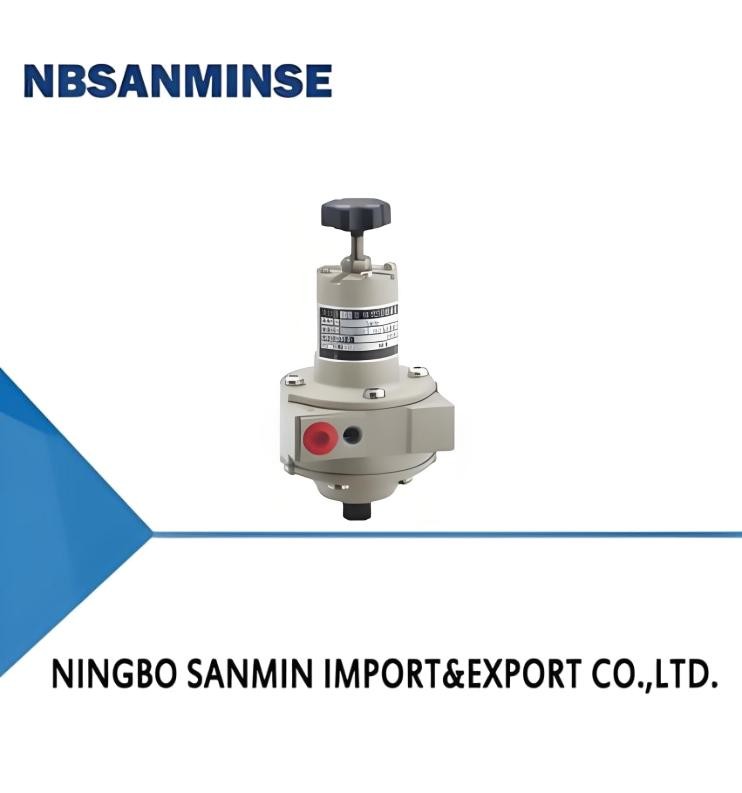

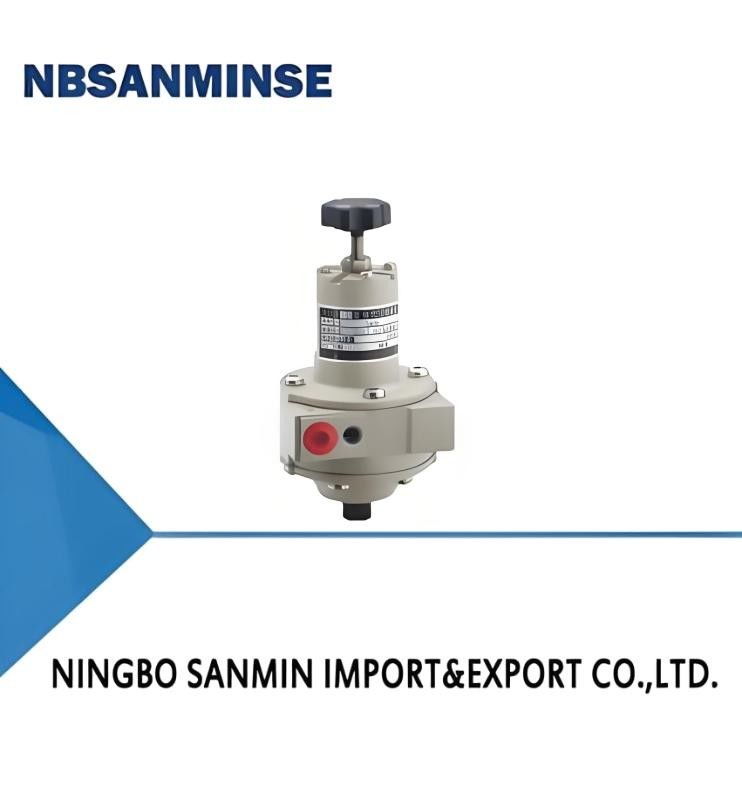

| KZ03 series air filtering pressure reducing valve |
|
KZ03 series air filtering pressure reducing valve is a pneumatic instrument for providing clean and required pressure air supply the auxiliary components. |
| Air consumption | 0.95L/min | ||
| Gas supply pressure | 1MPa | ||
| Filter degree | ≤5μm | ||
| Environment temper | -30~+70℃ | ||
| Relative humidity | ≤95% | ||
| To take over the thread | Rc1/4 | ||
| Overall dimensions | φ84×190mm | ||
| Weight | 0.7kg | ||
| Model | KZ03-1 | KZ03-2 | KZ03-3 |
| Output pressure (M Pa) | 0.14 (fixed) | 0.012-0.35 | 0.012-0.70 |
When ordering,please specify:1,type;2.Output pressure
