Overview

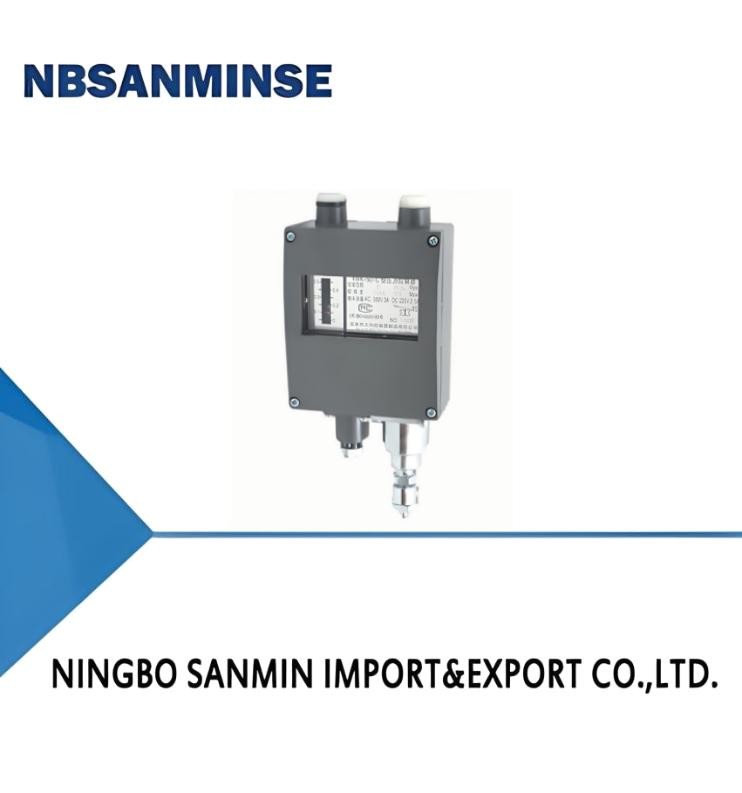

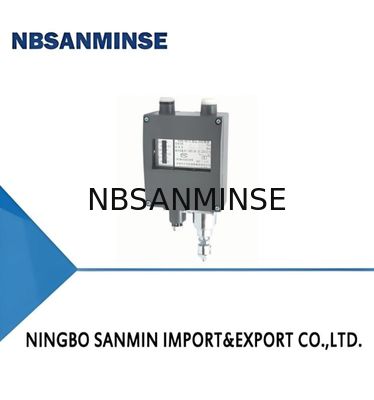

The TL5228 marine pressure switch/pressure controller adopts a bellows sensor, which can be used for gas, steam and other gas media as well as liquid media.
The setting value of TL5228 marine pressure switch/pressure controller is adjustable, with an adjustment range of -0.1 to 4MPa.
The TL5228 marine pressure switch/pressure controller adopts a cast aluminum shell, which is waterproof, and the controller meets the requirements for marine use.
Main Technical Performance
| Ambient temperature |
－25℃～55℃ |
| Degrees of protection provided by enclosure |
IP44 |
| Anti-Vibration Performance |
2~25Hz 1.6mm 25~100Hz 40m/s2 |
| Contact capacity |
AC 380V 3A(Resistive) DC 220V 2.5A (Resistive) |
| Repeatability error |
Refer to the specification sheet |
Specifications
Switching difference adjustable
| Serial Number |
Setting value adjustment range (MPa) |
Switching difference adjustment range (MPa) |
Set value error (MPa) |
Repetitive error (MPa) |
Notes |
Order Code Catalog |
| 1 |
－0.1～0 |
0.0065～0.026 |
0.004 |
0.002 |
Remarks column for numbers 6-11 |
TL5228.70-106071 |
| 2 |
0～0.1 |
0.006～0.028 |
0.004 |
0.002 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-110071 |
| 3 |
0～0.2 |
0.01～0.08 |
0.008 |
0.004 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-112071 |
| 4 |
0～0.3 |
0.025～0.1 |
0.012 |
0.006 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-114071 |
| 5 |
0～0.5 |
0.03～0.1 |
0.02 |
0.01 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-116071 |
| 6 |
0～0.8 |
0.07～0.25 |
0.032 |
0.016 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-118071 |
| 7 |
0～1 |
0.07～0.25 |
0.04 |
0.02 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-119071 |
| 8 |
0～1.5 |
0.1～0.28 |
0.06 |
0.03 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-120071 |
| 9 |
0～2 |
0.12～0.3 |
0.08 |
0.04 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-122071 |
| 10 |
0～3 |
0.15～0.5 |
0.12 |
0.06 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-124071 |
| 11 |
0～4 |
0.25～0.6 |
0.16 |
0.08 |
The controlled medium has no corrosive effect on brass, tin bronze, and lead tin solder |
TL5228.70-125071 |
