TL0022 Light Fuel Oil Pressure Switch Pressure Controller

Large Image : TL0022 Light Fuel Oil Pressure Switch Pressure Controller

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	TL0022

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

TL0022 Light Fuel Oil Pressure Switch Pressure Controller

Description

Working Viscosity:	<1×10－3m2/s	Switching Element:	Microswitch
Ambient Temp.:	－25℃～55℃	Medium Temp.:	－25℃～80℃
Warranty:	1 Year	Application:	Automatic Pressure Relief Protection Device
Highlight:	light fuel oil pressure switch controller , pressure switch controller

Overview
The TL0022 pressure switch/controller adopts two forms of sensors: diaphragm sensors and leak free piston sensors.
TL0022 pressure switch/pressure controller can be used for neutral gases such as air and gas, as well as liquid media such as lubricating oil and light fuel oil. The set value of the controller can be adjusted within a range of -0.1 to 1.6 MPa.
TL0022 pressure switch/pressure controller leak free piston sensor can be used for neutral lubricating media such as hydraulic oil, lubricating oil, and light fuel oil. The set value of the controller can be adjusted within a range of 0.5-40MPa.
Small design allows for a high switching frequency of 100 times per minute and particularly good vibration resistance.

Main Technical Performance

Working viscosity	<1×10^－3m²/s
Switching element	microswitch
Degrees of protection provided by enclosure	IP54(Compliant with DIN40050 and equivalent to IP54 in GB4208)
Installation position	The pressure interface is vertically downward (allowing for a tilt of 15 °)
Ambient temperature	－25℃～55℃
Medium temperature	－25℃～80℃
Anti-Vibration Performance	Max 100m/s²
Repeatability error	≤2.5%
Contact capacity	AC 220V 6A(Resistive)

Specifications
TL0022 switching error is not adjustable

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Pressure sensor material		Interface type ②	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Casing	Sealing ring	Interface type ②	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
－0.1～0	0.02	8	AL	Nitrile rubber	I	G1/4	0.2	01	TL0022.10-106265
－0.1～0	0.02	8	AL	Nitrile rubber	P	-	0.2	03	TL0022.10-106268
0.02～0.2	0.04	8	AL	Nitrile rubber	I	G1/4	0.2	01	TL0022.10-149265
0.02～0.2	0.04	8	AL	Nitrile rubber	P	-	0.2	03	TL0022.10-149268
0.05～0.8	0.13	8	AL	Nitrile rubber	I	G1/4	0.2	01	TL0022.10-165265
0.05～0.8	0.13	8	AL	Nitrile rubber	P	-	0.2	03	TL0022.10-165268
0.1～1.6	0.24	8	AL	Nitrile rubber	I	G1/4	0.2	02	TL0022.10-176265
0.1～1.6	0.24	8	AL	Nitrile rubber	P	-	0.2	03	TL0022.10-176268

TL0522 switching error is not adjustable

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Pressure sensor material			Interface type ②	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Casing	Sealing ring	Piston	Interface type ②	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
0.5～7	2	40	AL	Nitrile rubber	steel	I	G1/4	0.2	04	TL0522.10-201066
0.5～7	2	40	AL	Nitrile rubber	steel	P	-	0.2	03	TL0522.10-201078
1～16	3.5	40	AL	Nitrile rubber	steel	I	G1/4	0.2	04	TL0522.10-212066
1～16	3.5	40	AL	Nitrile rubber	steel	P	-	0.2	03	TL0522.10-212078
2.5～25	4	40	AL	Nitrile rubber	steel	I	G1/4	0.2	05	TL0522.10-224066
2.5～25	4	40	AL	Nitrile rubber	steel	P	-	0.2	03	TL0522.10-224278
4～40	4.5	40	AL	Nitrile rubber	steel	I	G1/4	0.2	05	TL0522.10-228066
4～40	4.5	40	AL	Nitrile rubber	steel	P	-	0.2	03	TL0522.10-228078

Note: In practical work, even a brief peak pressure cannot exceed this value.
② I-interface is internal thread P-interface is flange

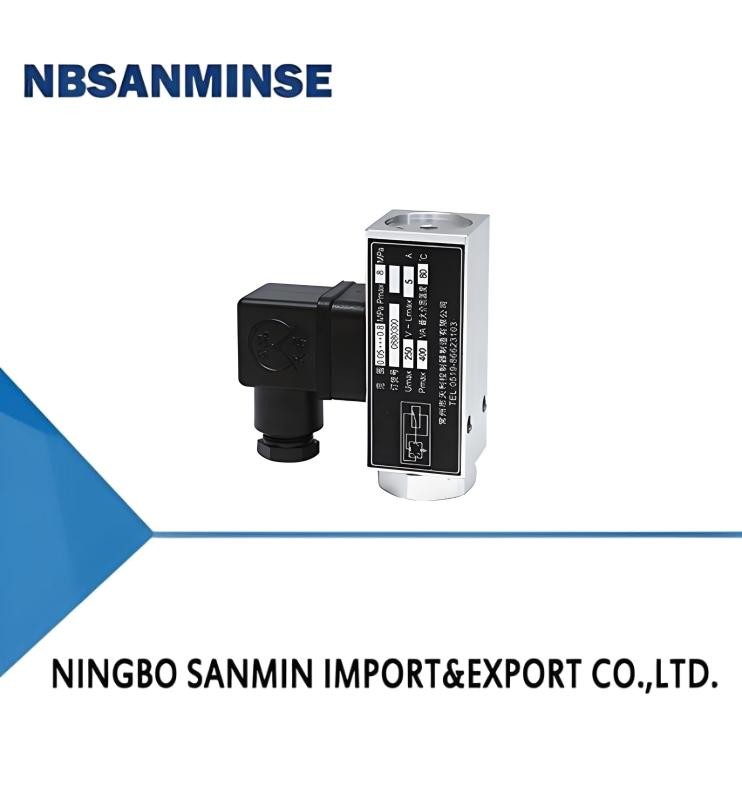

TL0022 Light Fuel Oil Pressure Switch Pressure Controller 0
