Overview

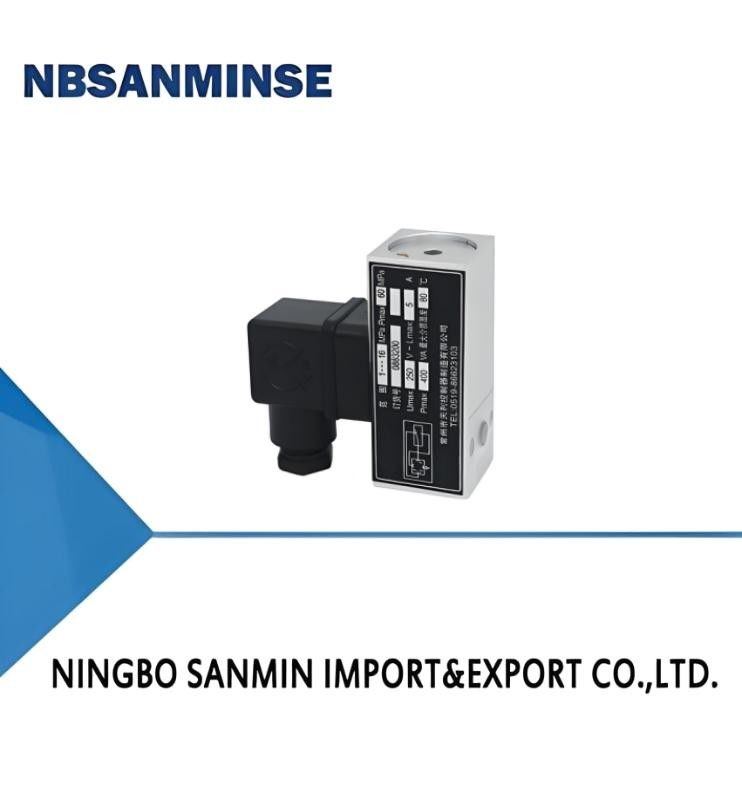

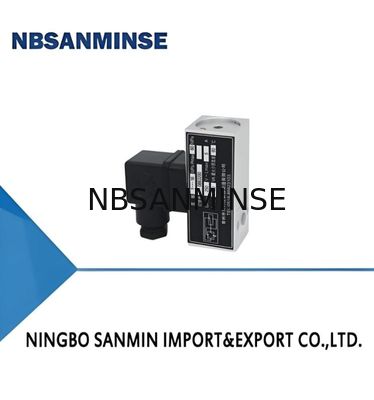

The TL0522 pressure switch/controller adopts two forms of sensors: diaphragm sensors and leak free piston sensors.
TL0522 pressure switch/pressure controller can be used for neutral gases such as air and gas, as well as liquid media such as lubricating oil and light fuel oil. The set value of the controller can be adjusted within a range of -0.1 to 1.6 MPa.
TL0522 pressure switch/pressure controller leak free piston sensor can be used for neutral lubricating media such as hydraulic oil, lubricating oil, and light fuel oil. The set value of the controller can be adjusted within a range of 0.5-40MPa.
Small design allows for a high switching frequency of 100 times per minute and particularly good vibration resistance.
Main Technical Performance
| Working viscosity |
<1×10－3m2/s |
| Switching element |
Microswitch |
| Degrees of protection provided by enclosure |
IP54(Compliant with DIN40050 and equivalent to IP54 in GB4208) |
| Installation position |
The pressure interface is vertically downward (allowing for a tilt of 15 °) |
| Ambient temperature |
－25℃～55℃ |
| Medium temperature |
－25℃～80℃ |
| Anti-Vibration Performance |
Max 100m/s2 |
| Repeatability error |
≤2.5% |
| Contact capacity |
AC 220V 6A(Resistive) |
Specifications
Switching difference is not adjustable
| Setting value adjustment range (MPa) |
Switching difference not greater than (MPa) |
**Allowable pressure ① (MPa) |
Pressure sensor material |
Interface type ② |
Internal thread of interface |
Weight
(kg)
|
Outline dimension drawing number |
Order catalog number |
| Casing |
Sealing ring |
Piston |
| 0.5～7 |
2 |
40 |
AL |
Nitrile rubber |
steel |
I |
G1/4 |
0.2 |
04 |
TL0522.10-201066 |
| 0.5～7 |
2 |
40 |
AL |
Nitrile rubber |
steel |
P |
- |
0.2 |
03 |
TL0522.10-201078 |
| 1～16 |
3.5 |
40 |
AL |
Nitrile rubber |
steel |
I |
G1/4 |
0.2 |
04 |
TL0522.10-212066 |
| 1～16 |
3.5 |
40 |
AL |
Nitrile rubber |
steel |
P |
- |
0.2 |
03 |
TL0522.10-212078 |
| 2.5～25 |
4 |
40 |
AL |
Nitrile rubber |
steel |
I |
G1/4 |
0.2 |
05 |
TL0522.10-224066 |
| 2.5～25 |
4 |
40 |
AL |
Nitrile rubber |
steel |
P |
- |
0.2 |
03 |
TL0522.10-224278 |
| 4～40 |
4.5 |
40 |
AL |
Nitrile rubber |
steel |
I |
G1/4 |
0.2 |
05 |
TL0522.10-228066 |
| 4～40 |
4.5 |
40 |
AL |
Nitrile rubber |
steel |
P |
- |
0.2 |
03 |
TL0522.10-228078 |
Note: In practical work, even a brief peak pressure cannot exceed this value.
② I-interface is internal thread P-interface is flange.
