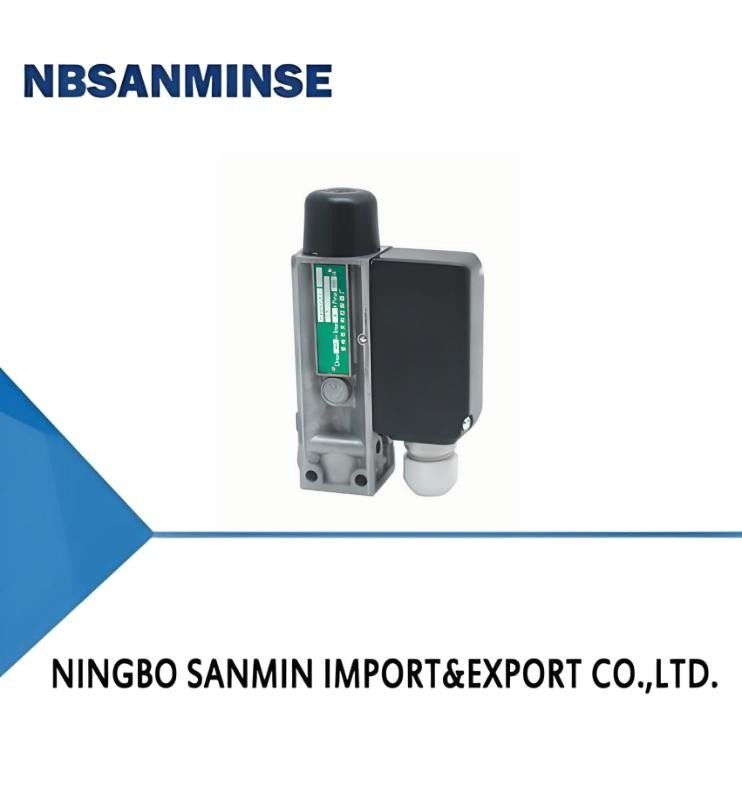

TL0515 0.5-25MPa Pressure Switch Pressure Controller Adopts Leak Free Piston Type Sensor

Large Image : TL0515 0.5-25MPa Pressure Switch Pressure Controller Adopts Leak Free Piston Type Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	TL0515

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

TL0515 0.5-25MPa Pressure Switch Pressure Controller Adopts Leak Free Piston Type Sensor

Description

Working Viscosity:	<1×10－3m2/s	Switching Element:	Microswitch
Medium Temp.:	0～90℃	Repeatability Error:	±2.5%
Warranty:	1 Year
Highlight:	0.5-25MPa pressure switch controller , Leak Free Sensor pressure switch controller

Overview
The TL0515 pressure switch/controller adopts a leak free piston type sensor, which can be used for neutral gases such as oil mist compressed air, hydraulic oil, water oil emulsion, and liquid media with good lubrication performance that have no corrosive effect on pressure sensor materials.
The setting value of TL0515 pressure switch/pressure controller is adjustable, with an adjustment range of 0.5-25MPa. Compact structure, small size, and good anti vibration performance.

Main Technical Performance

Working viscosity	<1×10^－3m²/s
Switching element	Microswitch
degrees of protection provided by enclosure	IP54(Compliant with DIN40050 and equivalent to IP54 in GB4208)
Medium temperature	0～90℃
Ambient temperature	－5℃～50℃(Slotted sealing ring) －30℃～50℃(GLYdrilling sealing ring)
Anti-Vibration Performance	Max 100m/s²
Installation position	The pressure interface is vertically downward (allowing for a tilt of 15 °)
Repeatability error	±2.5%
Contact capacity	AC 220V 6A(Resistive)

Specifications
Switching difference is not adjustable

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	Allowable pressure ① (MPa)	Switching frequency/ minute	Pressure sensor material			Pressure interface type ②	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	Allowable pressure ① (MPa)	Switching frequency/ minute	Casing	Sealing ring	Piston	Pressure interface type ②	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
Adjust the set value with the hexagon socket screw with plastic protective cover:
0.5～7	1.2	25	20	aluminium	Nitrile rubber	stainless steel1Cr18Ni9Ti	I	G1/4	0.4	01	TL0515.10-201265
0.5～7	1.2	25	20	aluminium	Nitrile rubber	stainless steel1Cr18Ni9Ti	P	-	0.4	02	TL0515.10-201268
1～16	1.8	25	20	aluminium	Nitrile rubber	stainless steel1Cr18Ni9Ti	I	G1/4	0.4	01	TL0515.10-212265
1～16	1.8	25	20	aluminium	Nitrile rubber	stainless steel1Cr18Ni9Ti	P	-	0.4	02	TL0515.10-212268
5～25	1.6	34	20	aluminium	Nitrile rubber	stainless steel1Cr18Ni9Ti	I	G1/4	0.4	01	TL0515.10-230265
5～25	1.6	34	20	aluminium	Nitrile rubber	stainless steel1Cr18Ni9Ti	P	-	0.4	02	TL0515.10-230268

Note: In practical work, even a brief peak pressure cannot exceed this value.
② I-interface is internal thread P-interface is flange.
③ Specification for GLydring sealing ring.

TL0515 0.5-25MPa Pressure Switch Pressure Controller Adopts Leak Free Piston Type Sensor 0

TL0515 0.5-25MPa Pressure Switch Pressure Controller Adopts Leak Free Piston Type Sensor 1

TL0515 0.5-25MPa Pressure Switch Pressure Controller Adopts Leak Free Piston Type Sensor 2
