TL4326 Diaphragm Sensor Zero Voltage Switch Zero Voltage Controller For Low Pressure Alarms In System

Large Image : TL4326 Diaphragm Sensor Zero Voltage Switch Zero Voltage Controller For Low Pressure Alarms In System

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	TL4326

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

TL4326 Diaphragm Sensor Zero Voltage Switch Zero Voltage Controller For Low Pressure Alarms In System

Description

Ambient Temp.:	－25℃～40℃	Contact Capacity:	AC 220V 6A（Resistive）
Repeatability Error:	2%	Medium Temp.:	－25℃～80℃
Service Life:	1 * 105 Times	Weight:	0.23kg
Warranty:	1 Year
Highlight:	diaphragm sensor zero voltage switch , Low Pressure Alarms zero voltage switch

Overview
The TL4326 zero pressure switch/zero pressure controller overcomes the common problem of pressure controllers on the market not working when the pressure drops to zero, and is suitable for low pressure alarms in the system.
The TL4326 zero pressure switch/zero pressure controller uses a diaphragm sensor. High pressure resistance, long service life, compact structure, and small volume.

Main technical skills

Ambient temperature	－25℃～40℃
Contact capacity	AC 220V 6A(Resistive)
Repeatability error	2%
Degrees of protection provided by enclosure	IP65
Medium temperature	－25℃～80℃
Working viscosity	<1×10^－3m²/s
Anti-Vibration Performance	Max 100m/s²
Service life	1 * 105 times
Weight	0.23kg

Specifications
Switching difference is not adjustable

Setting value adjustment range (MPa)	Switching difference range (MPa)	**Allowable pressure (MPa)	Materials in contact with the medium	External thread of interface	Order Code Catalog
0.002～0.17	0.015～0.03	3.5	1Cr18Ni9Ti fluororubber	M12*1.5	TL4326.70-132117
0.003～0.5	0.035～0.07	60	1Cr18Ni9Ti fluororubber	M12*1.5	TL4326.70-136117
0.003～1	0.07～0.14	60	1Cr18Ni9Ti fluororubber	M12*1.5	TL4326.70-137117
0.1～12	0.27～0.4	60	1Cr18Ni9Ti fluororubber	M12*1.5	TL4326.70-183117
0.2～24	0.8～1.4	60	1Cr18Ni9Ti fluororubber	M12*1.5	TL4326.70-189117
0.5～42	3.6～5	60	1Cr18Ni9Ti fluororubber	M12*1.5	TL4326.70-204117

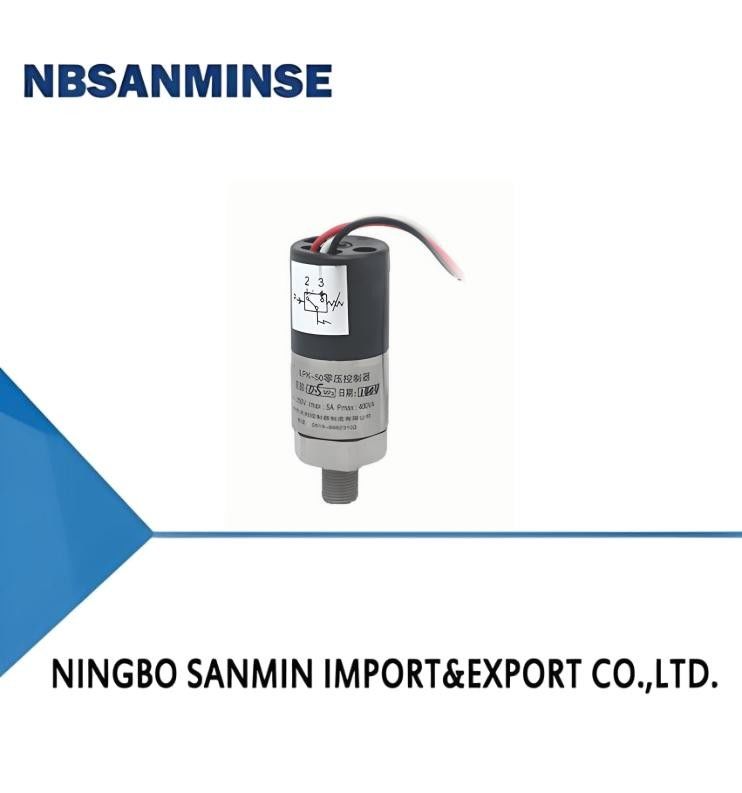

TL4326 Diaphragm Sensor Zero Voltage Switch Zero Voltage Controller For Low Pressure Alarms In System 0

TL4326 Diaphragm Sensor Zero Voltage Switch Zero Voltage Controller For Low Pressure Alarms In System 1
