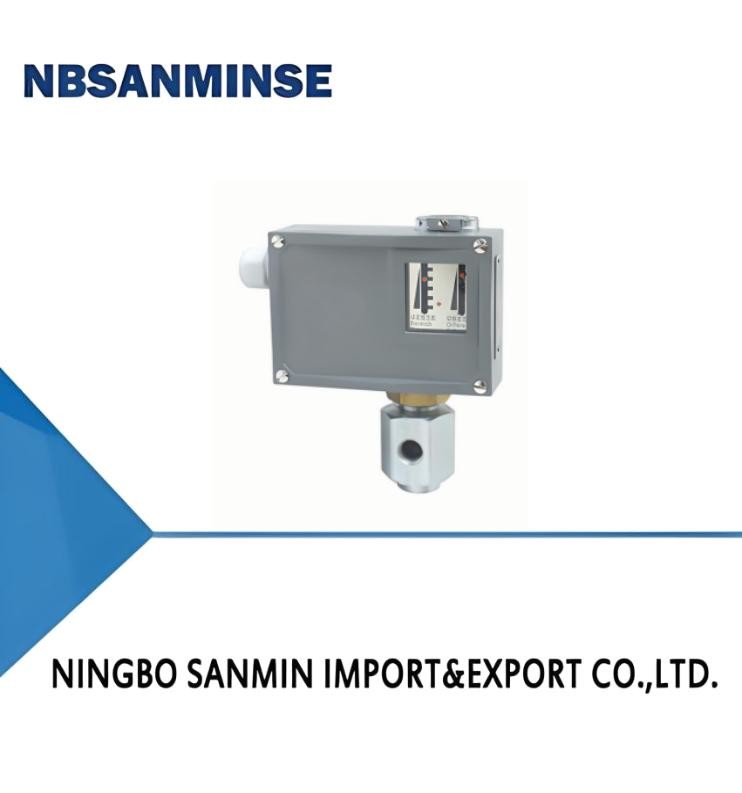

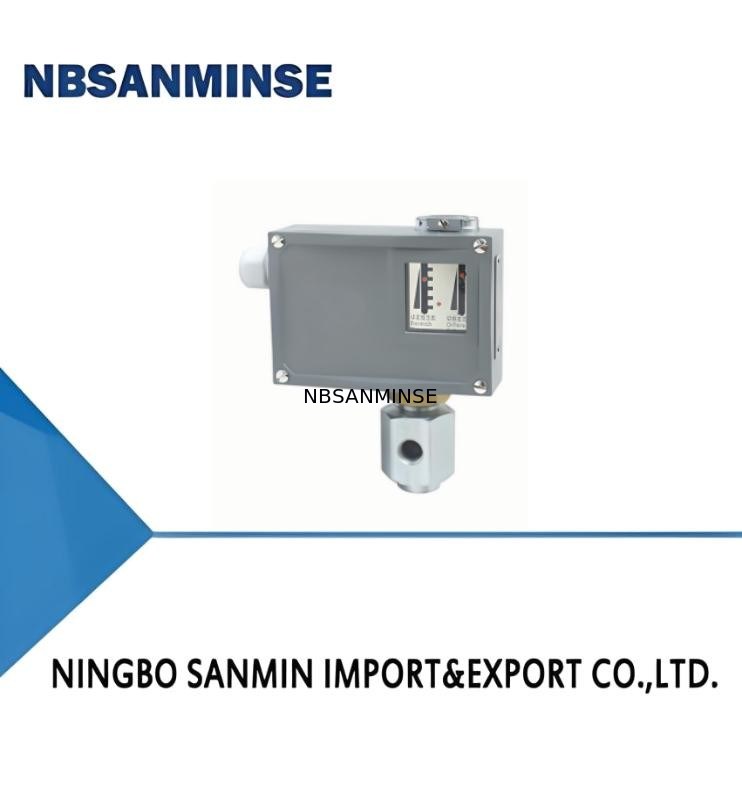

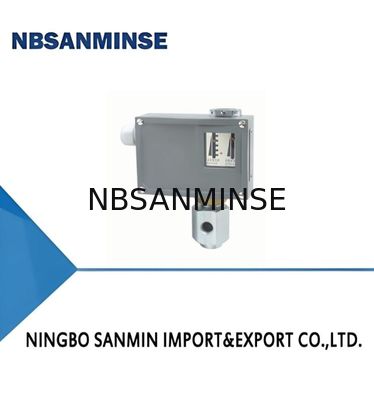

TL0402 Piston Type Sensor Pressure Switch Pressure Controller 0.3-40MPa

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	TL0402

Detail Information
Switching Element:	Microswitch	Ambient Temp.:	－5℃～50℃
Medium Temp.:	0～100℃	Repeatability Error:	≤1.5%
Highlight:	piston sensor pressure switch controller , 0.3-40MPa pressure switch controller

Product Description

Overview
The TL0402 pressure switch/pressure controller adopts a piston type sensor with a drain port, which can be used for neutral hydraulic oil and other media.
The setting value of TL0402 pressure switch/pressure controller is adjustable, with an adjustment range of 0.3-40MPa.

Main Technical Performance

Switching element	Microswitch
Degrees of protection provided by enclosure	IP65(Compliant with DIN40050 and equivalent to IP65 in GB4208)
Ambient temperature	－5℃～50℃
Medium temperature	0～100℃
Installation position	The pressure interface is vertically downward (allowing for a tilt of 15 °)
Anti-Vibration Performance	TL0402:40m/s²TL0403:20m/s²
Repeatability error	≤1.5%
Contact capacity	AC 220V 6A(Resistive)

Specifications
Switching difference is not adjustable

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensor material		Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Piston	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
0.3～4	0.4	16	30	Galvanized Steel	steel	G1/4	0.9	01	TL0402.10-191019
0.3～6.3	0.6	16	30	Galvanized Steel	steel	G1/4	0.9	01	TL0402.10-192019
0.5～10	0.9	30	30	Galvanized Steel	steel	G1/4	0.9	01	TL0402.10-202019
0. 5～16	1.2	30	30	Galvanized Steel	steel	G1/4	0.9	01	TL0402.10-203019
1～25	2	80	30	Galvanized Steel	steel	G1/4	0.9	01	TL0402.10-215019
1～40	2.2	80	30	Galvanized Steel	steel	G1/4	0.9	01	TL0402.10-216019

Switching difference adjustable

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensor material		Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Piston	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
0.3～4	0.6	16	30	Galvanized Steel	steel	G1/4	0.95	01	TL0402.00-191019
0.3～6.3	0.8	16	30	Galvanized Steel	steel	G1/4	0.95	01	TL0402.00-192019
0.5～10	1.2	30	30	Galvanized Steel	steel	G1/4	0.95	01	TL0402.00-202019
0. 5～16	1.6	30	30	Galvanized Steel	steel	G1/4	0.95	01	TL0402.00-203019
1～25	2.6	80	30	Galvanized Steel	steel	G1/4	0.95	01	TL0402.00-215019
1～40	3.5	80	30	Galvanized Steel	steel	G1/4	0.95	01	TL0402.00-216019

Switching difference is not adjustable (small switching difference)

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensor material		Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Piston	Internal thread of interface	Weight (kg)	Outline dimension drawing number	Order catalog number
0.3～4	0.3	16	30	Galvanized Steel	steel	G1/4	0.9	01	TL0403.70-191019
0.3～6.3	0.5	16	30	Galvanized Steel	steel	G1/4	0.9	01	TL0403.70-192019
0.5～10	0.7	30	30	Galvanized Steel	steel	G1/4	0.9	01	TL0403.70-202019
0. 5～16	1	30	30	Galvanized Steel	steel	G1/4	0.9	01	TL0403.70-203019
1～25	1.5	80	30	Galvanized Steel	steel	G1/4	0.9	01	TL0403.70-215019
1～40	1.8	80	30	Galvanized Steel	steel	G1/4	0.9	01	TL0403.70-216019

Note: In practical work, even a brief peak pressure cannot exceed
