TL5238 Bellows Sensor Pressure Switch Pressure Controller Adjustable

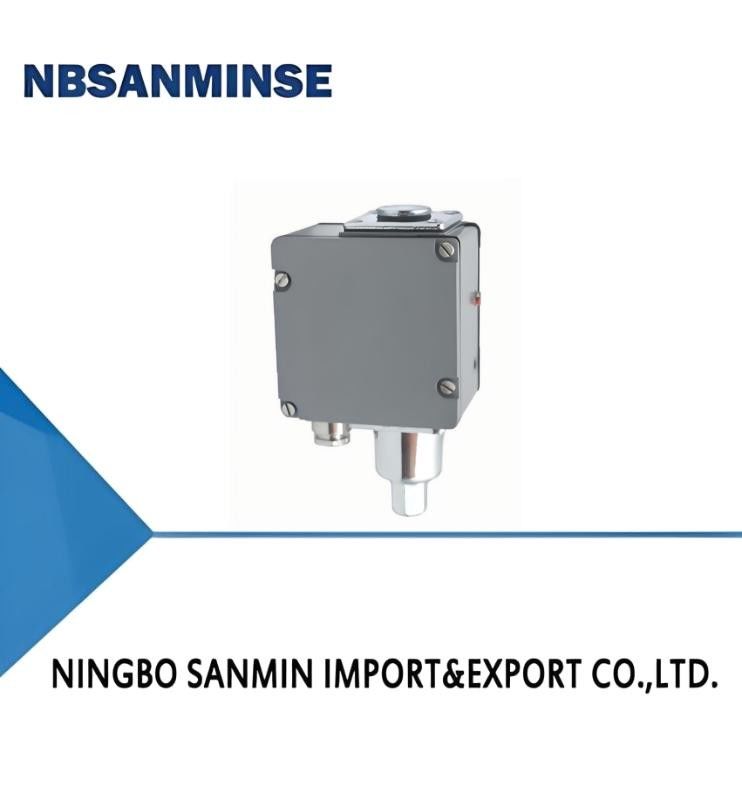

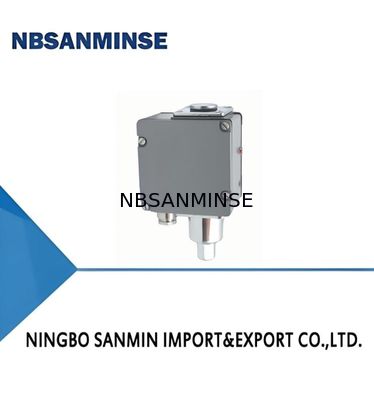

Large Image : TL5238 Bellows Sensor Pressure Switch Pressure Controller Adjustable

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	TL5238

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

TL5238 Bellows Sensor Pressure Switch Pressure Controller Adjustable

Description

Working Viscosity:	<1×10－3m2/s	Ambient Temp.:	－25℃～55℃
Medium Temp.:	0～95℃	Repeatability Error:	≤1.5%
Warranty:	1 Year
Highlight:	bellows sensor pressure switch controller , adjustable pressure switch controller

Overview
The TL5238 pressure switch/controller adopts a bellows sensor, which can be used for neutral gases such as air and steam, as well as liquid media such as water, refrigerant, and oil.
The setting value of TL5238 pressure switch/pressure controller is adjustable, with a range of 0-2MPa. The shell is made of cast aluminum and is waterproof.

Main Technical Performance

Working viscosity	<1×10^－3m²/s
Degrees of protection provided by enclosure	IP65
Ambient temperature	－25℃～55℃
Medium temperature	0～95℃
Repeatability error	≤1.5%
Contact capacity	Vmax=380V AC Imax=6A(Resistive)Pmax=600VA

Specifications
Switching difference is not adjustable (single pole double throw micro switch)

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensing material		Internal thread of interface	Outline dimension drawing number	Order Code Catalog
Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Corrugated tube	Internal thread of interface	Outline dimension drawing number	Order Code Catalog
0～0.1	0.003	1.2	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.10-110066
0～0.2	0.004	1.2	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.10-112066
0.02～0.4	0.008	1.2	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.10-151066
0.02～0.6	0.01	1.2	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.10-152066
0.03～0.8	0.012	1.8	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.10-157066
0.03～1.0	0.015	2.0	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.10-158066
0.05～1.6	0.025	2.5	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.10-167066
0.05～2.0	0.03	3.5	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.10-168066

Switching difference adjustable (single pole double throw micro switch)

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensing material		Internal thread of interface	Outline dimension drawing number	Order Code Catalog
Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Corrugated tube	Internal thread of interface	Outline dimension drawing number	Order Code Catalog
0～0.1	0.008	1.2	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.00-110066
0～0.2	0.01	1.2	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.00-112066
0.02～0.4	0.025	1.2	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.00-151066
0.02～0.6	0.03	1.2	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.00-152066
0.03～0.8	0.04	1.8	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.00-157066
0.03～1.0	0.05	2.0	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.00-158066
0.05～1.6	0.08	2.5	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.00-167066
0.05～2.0	0.12	3.5	20	hpb59-1 brass	1Cr18 Ni9Ti stainless steel	G1/4	01	TL5238.00-168066

Note: In practical work, even a brief peak pressure cannot exceed
