Overview

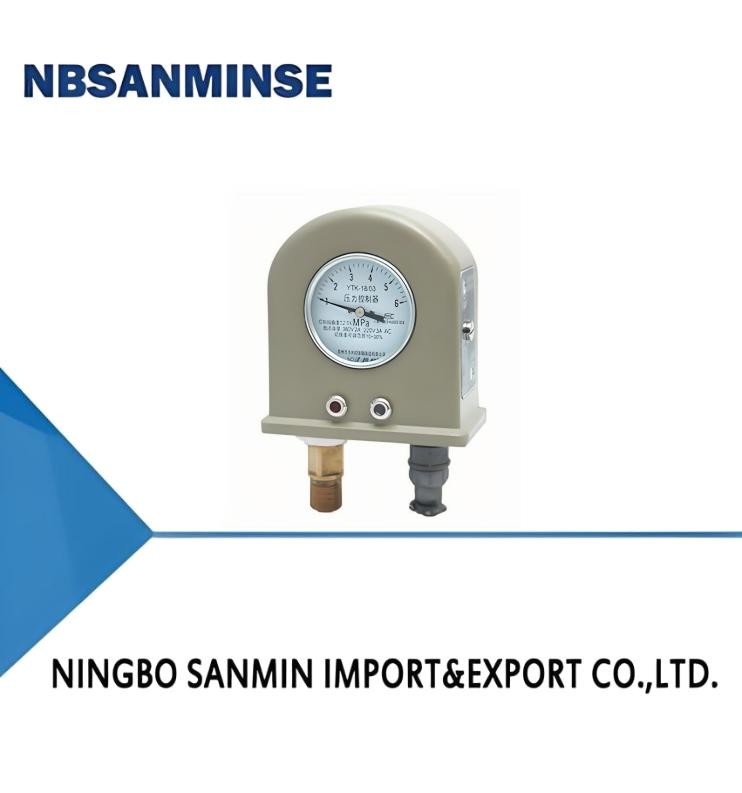

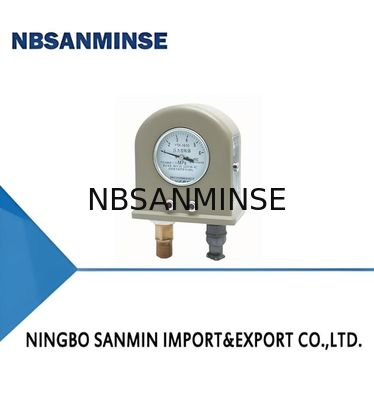

The TL5125 pressure switch/pressure controller is suitable for measuring the pressure of non explosive fluid media and performing positional (one position or two position) control.
A pressure control instrument that uses elastic elements to drive micro switches. It has the characteristics of reasonable structure, accurate action, reliable use, high frequency of opening and closing, good vibration resistance, and large contact capacity.
According to the different types of objects being tested (controlled), various types are made, including pressure indicators and non pressure indicators (both ordinary and corrosion-resistant). There is a device that can adjust the switching difference to adjust the upper and lower switching values of the measured (controlled) medium to the appropriate control pressure range.
In addition, there are signal indicator lights to enable the control circuit to emit light signals when disconnected or connected.
Main Technical Performance
| Setting value error |
±1.5%(After calibration) |
| Repeatability error |
1.5% |
| Indication error |
±4% |
| Control mode |
One position control - normally closed or normally open |
| Two position control - normally closed and normally open |
| Setpoint adjustment range (upper limit of pressure range) |
No indication value:15~100% |
| There is an indication value:20~75% |
| Switching difference (upper limit of pressure range) |
One position (fixed): not more than 10% |
| Two position (adjustable):10~30% |
| Contact capacity |
AC 380V 2AorDC 220V 3A |
| Signal indicator light working power supply |
AC 380Vor220V |
| Dielectric Strength |
50Hz sine AC 2000V for one minute |
| Usage environment |
-25~70℃,Relative humidity not exceeding 90% |
| Temperature influence |
Not exceeding 0.8%/10 ℃ (with a temperature deviation of 20 ± 5 ℃) |
| Weight |
1kg |
Type and pressure range
| Type |
External thread of joint |
Order Code Catalog |
Ordering Code Catalog (with indication) |
| 0～0.6 |
M20*1.5 |
TL5125.00-117051 |
TL5125.06-117051 |
| 0～1 |
M20*1.5 |
TL5125.00-119051 |
TL5125.06-119051 |
| 0～1.6 |
M20*1.5 |
TL5125.00-121051 |
TL5125.06-121051 |
| 0～2.5 |
M20*1.5 |
TL5125.00-123051 |
TL5125.06-123051 |
| 0～4 |
M20*1.5 |
TL5125.00-125051 |
TL5125.06-125051 |
| 0～6 |
M20*1.5 |
TL5125.00-126051 |
TL5125.06-126051 |
| 0～10 |
M20*1.5 |
TL5125.00-127051 |
TL5125.06-127051 |
| 0～16 |
M20*1.5 |
TL5125.00-128051 |
TL5125.06-128051 |
| 0～25 |
M20*1.5 |
TL5125.00-129051 |
TL5125.06-129051 |
| 0～40 |
M20*1.5 |
TL5125.00-130051 |
TL5125.06-130051 |
| 0～60 |
M20*1.5 |
TL5125.00-131051 |
TL5125.06-131051 |
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
