Overview

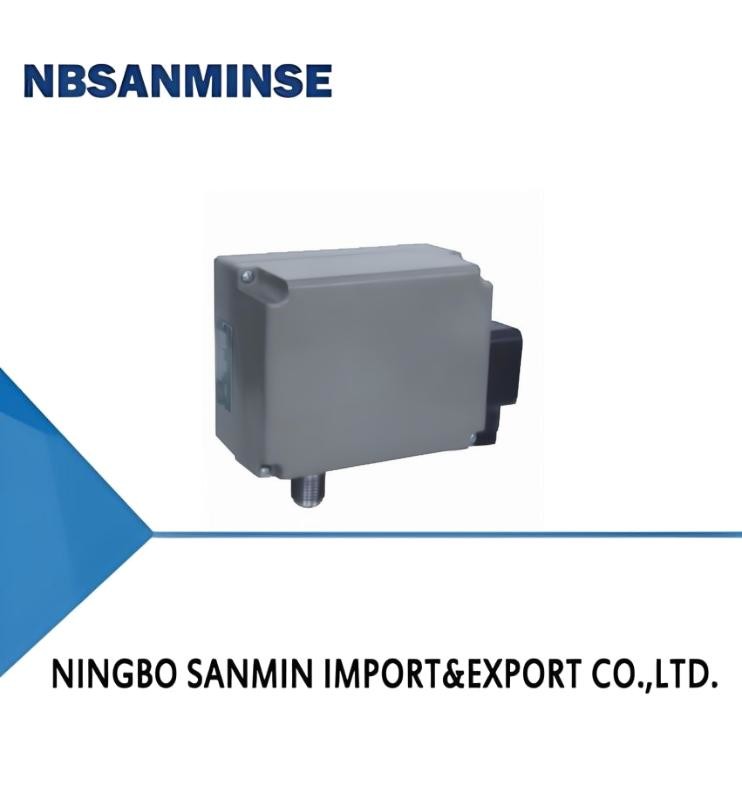

The TL1216 pressure switch/controller adopts a spring tube sensor, which can be used for corrosive gases and liquid media,
The setting value of TL1216 pressure switch/pressure controller is adjustable, with a range of 1~40MPa.
TL1216 pressure switch/pressure controller has a wide pressure control range, high control accuracy, small switching difference, and the switching values of two sets of micro switches can be set separately. The sensor is suitable for corrosive media (gas or liquid).
Main Technical Performance
| Working viscosity |
≤400 mm2/s |
| Switching element |
Micro switch (Group 2) |
| Degrees of protection provided by enclosure |
IP65 |
| Ambient temperature |
－25℃~55℃ |
| Medium temperature |
0℃~88℃ |
| Installation position |
arbitrary |
| Anti-Vibration Performance |
Max 10 m/s2 |
| Repeatability error |
≤1％ |
| Contact capacity |
Vmax=380VAC Imax=6A(Resistive)Pmax=600VA |
Specifications
Switching difference is not adjustable
| Setting value adjustment range (MPa) |
Switching difference not greater than (MPa) |
**Allowable pressure ① (MPa) |
Switching frequency/minute |
Pressure sensor material |
External thread of interface |
Outline dimension drawing number |
Order catalog number |
| 1~10 |
0.20 |
15 |
60 |
316L |
G1/2 |
01 |
TL1216.10-211103 |
| 1~16 |
0.32 |
20 |
60 |
316L |
G1/2 |
01 |
TL1216.10-212106 |
| 2~25 |
0.50 |
32 |
60 |
316L |
G1/2 |
01 |
TL1216.10-221106 |
| 2~40 |
0.80 |
50 |
60 |
316L |
G1/2 |
01 |
TL1216.10-222106 |
Note: In practical work, even a brief peak pressure cannot exceed this value.
