TL1217 Corrosive Gases Pressure Switch Pressure Controller With Spring Tube Sensor

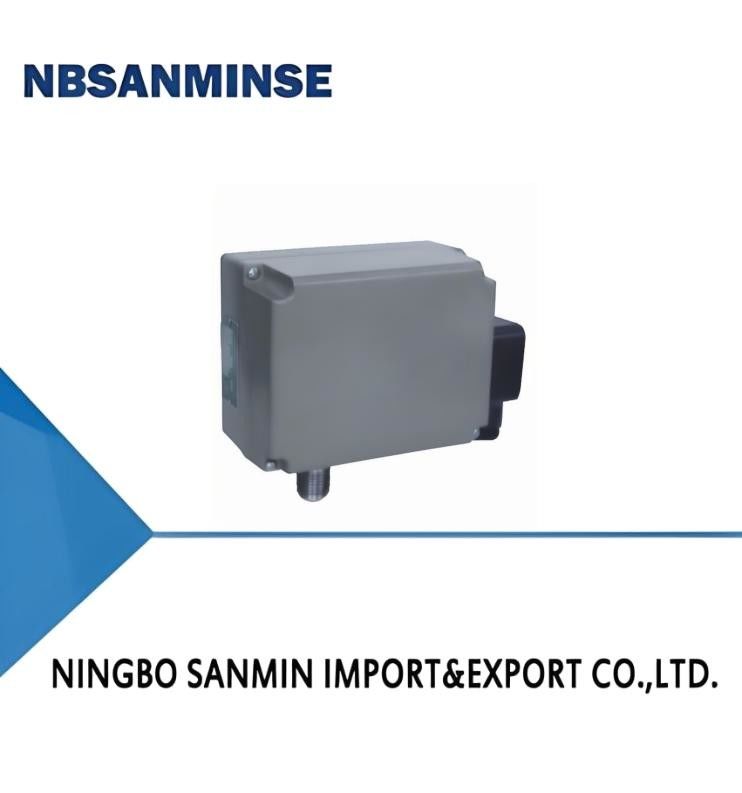

Large Image : TL1217 Corrosive Gases Pressure Switch Pressure Controller With Spring Tube Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	TL1217

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

TL1217 Corrosive Gases Pressure Switch Pressure Controller With Spring Tube Sensor

Description

Working Viscosity:	≤400 Mm2/s	Ambient Temp.:	－25℃~55℃
Medium Temp.:	0℃~88℃	Repeatability Error:	≤1％
Warranty:	1 Year
Highlight:	corrosive gases pressure switch controller , Spring Tube Sensor pressure switch controller

Overview
The TL1217 pressure switch/controller adopts a spring tube sensor, which can be used for corrosive gases and liquid media. The set value of the TL1217 pressure switch/controller is adjustable, with a range of 1-40MPa.
TL1217 pressure switch/pressure controller has a wide pressure control range, high control accuracy, small switching difference, and is suitable for corrosive media (gas or liquid) sensors.

Main Technical Performance

Working viscosity	≤400 mm²/s
Switching element	Micro switch (one set)
Degrees of protection provided by enclosure	IP65
Ambient temperature	－25℃~55℃
Medium temperature	0℃~88℃
Installation position	arbitrary
Anti-Vibration Performance	Max 10 m/s²
Repeatability error	≤1％
Contact capacity	Vmax=380VAC Imax=6A(Resistive)Pmax=600VA

Specifications
Switching difference is not adjustable

Setting value adjustment range (MPa)	Switching difference not greater than (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensor material	External thread of interface	Outline dimension drawing number	Order catalog number
1~10	0.20	15	60	316L	G1/2	01	TL1217.10-211106
1~16	0.32	20	60	316L	G1/2	01	TL1217.10-212106
2~25	0.50	32	60	316L	G1/2	01	TL1217.10-221106
2~40	0.80	50	60	316L	G1/2	01	TL1217.10-222106

Note: In practical work, even a brief peak pressure cannot exceed this value.

TL1217 Corrosive Gases Pressure Switch Pressure Controller With Spring Tube Sensor 0
