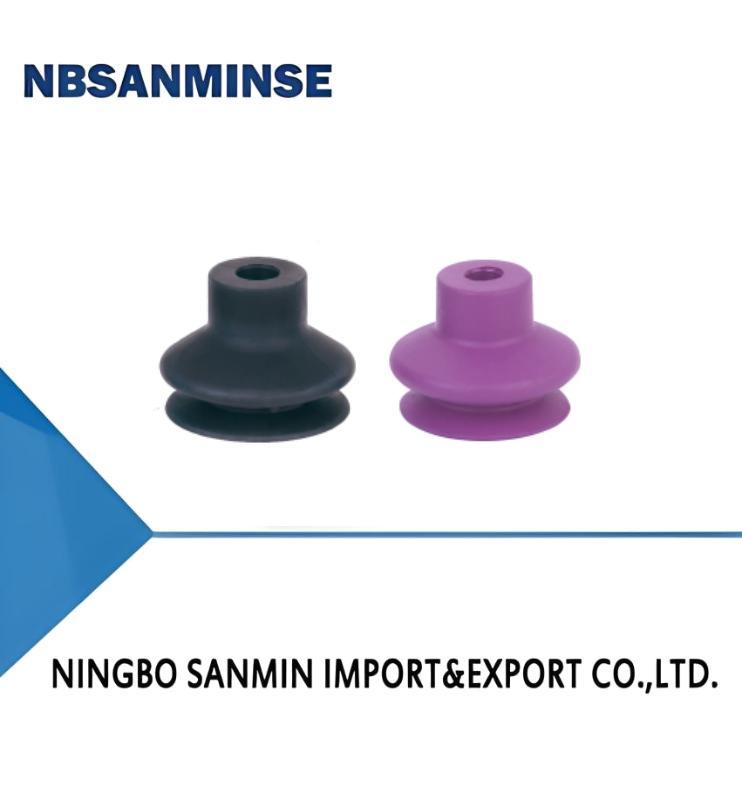

SBA Series 1.5 Bellows Suction Cup

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	SBA6

Detail Information
Pull-out Force N:	1.4	Inner Volume Cm³:	0.1
Min. Curved Radius Of Workpiece Mm:	2	Recommended Hose Dia. Mm:	4
MPQ Pcs:	10

Product Description

Features

◇ 1.5 Bellows

◇ Special material with high temperature resistance is optional

◇ Various sizes for option

Advantages

◇ Easy to fit uneven surface of workpiece, has buffer effect

◇ Can handle workpiece with high temperature

◇ Fitting can be used repeatedly, greatly reducing customer’s cost

◇ Suitable for workpieces with different sizes and shapes

Applications

◇ Handling of workpieces with uneven surface, such as carton,

cardboard, cambered workpiece, pipe, etc.

◇ Handling high temperature plastic injection parts, metal sheet,

glass, etc.

◇ Handling smooth wood plate, smooth steel plate and so on

Structure

◇ 1.5 Bellows, large compressed stroke

◇ Suction cup and fitting are split structure design, wearing parts

can be replaced separately

◇ Mark free plug is optional, for grasping without any mark

SBA 33 N-G2M -PK
① ③ ④ ⑤
①Series	②Diameter		③Material&Hardness		④Connection thread		⑤Special specification
SBA	6 -φ6mm	27-φ27mm	N -NBR	55	Nil -Suction cup only		Nil-Standard type
	11-φ11mm	33-中33mm	Ws-White silicone	50	M5M-M5×0.8male thread		PK-With mark free plug
	14-φ14mm	43-中43mm	HD-High temp/Mark free	60	G1M-G1/8 male thread
	16-φ16mm	53-中53mm	NR-Naturalrubber	40	G2M-G1/4 male thread
	20-中20mm	63-中63mm			M5F-M5×0.8 female thread
	22-中22mm	78-中78mm			G1F-G1/8 female thread
	25-中25mm				G2F-G1/4 female thread
Selection
Model		Connection thread M-Male thread				F-Female thread
SBA6□		SBA6□-M5M				SBA6□-M5F
SBA11□		5BA11□-M5M SBA11□-G1M				5BA11□-M5F 5BA11□-G1F
SBA14□		SBA14□-M5M SBA14□-G1M				SBA14□-M5F SBA14□-G1F
SBA¹6 □		SBA16□-M5M SBA16□-G1M				5BA16□-M5F 5BA16□-G1F
SBA20□		SBA20□-M5M SBA20□-G1M				SBA20□-M5F SBA20□-G1F
SBA22□		5BA22□-M5M SBA22□-G1M				5BA22□-M5F 5BA22□-G1F
SBA25□		SBA25□-M5M SBA25□-G1M				SBA25□-M5F SBA25□-G1F
SBA27□		5BA27□-G2M				5BA27□-G2F
SBA33□		SBA33□-G2M				SBA33□-G2F
SBA43□		5BA43□-G2M				SBA43□-G2F
SBA53□		SBA53□-G2M				SBA53□-G2F
SBA63□		5BA63□-G2M				SBA63□-G2F
SBA78□		SBA78□-G2M				SBA78□-G2F

Selection-With mark free plug
Model		M-Male thread			F-Female thread
SBA11□-PK SBA14□-PK		SBA11□-M5M-PK SBA11□-G1M-PK			SBA11□-M5F-PK SBA11□-G1F-PK
		5BA14□-M5M-PK SBA14□-G1M-PK			5BA14□-M5F-PK 5BA14□-G1F-PK
SBA16□-PK		5BA16□-M5M-PK SBA16□-G1M-PK			5BA16□-M5F-PK SBA16□-G1F-PK
SBA20□-PK		SBA20□-M5M-PK SBA20□-G1M-PK			SBA20□-M5F-PK 5BA20□-G1F-PK
SBA22□-PK		SBA22□-M5M-PK SBA22□-G1M-PK			SBA22□-M5F-PK SBA22□-G1F-PK
SBA25□-PK		5BA25□-M5M-PK SBA25□-G1M-PK			5BA25□-M5F-PK 5BA25□-G1F-PK
SBA27□-PK		SBA27□-G2M-PK			5BA27□-G2F-PK
SBA33□-PK		5BA33□-G2M-PK			5BA33□-G2F-PK
SBA43□-PK SBA53□-PK		SBA43□-G2M-PK			5BA43□-G2F-PK
		5BA53□-G2M-PK			5BA53□-G2F-PK
Technical parameters
Model	Pull-out force N		Innervolume cm³	Min.curved radius of workpiece mm	Weight 9	Recommended hose dia. mm	MPQ pcs
SBA6	1.4		0.1	2	0.2	4	10
SBA11	3.8		0.2	10	1.0	6	10
SBA14	5.0		0.4	13	1.1	6	10
SBA16	6.7		0.8	20	1.4	6	10
SBA20	10.7		1.2	30	1.5	6	5
SBA22	15.2		1.4	25	2.2	6	5
SBA25	17.3		3.2	20	3.1	6	5
SBA27	24.0		3.4	23	4.7	6	5
SBA33 SBA43	39.6		4.8	40	7.2	6	5
	64.5		11.4	60	11.9	6	5
SBA53 SBA63 SBA78	95.0		26.0	75	20.2	8	1
	135.0		44.0	75	25.5	8	1
	218.0		76.0	70	52.6	8	1

◇ Note:Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surfaces. Recommend the length of vacuum hose to be as short as possible, max 2m SBA Series 1.5 Bellows Suction Cup 2
