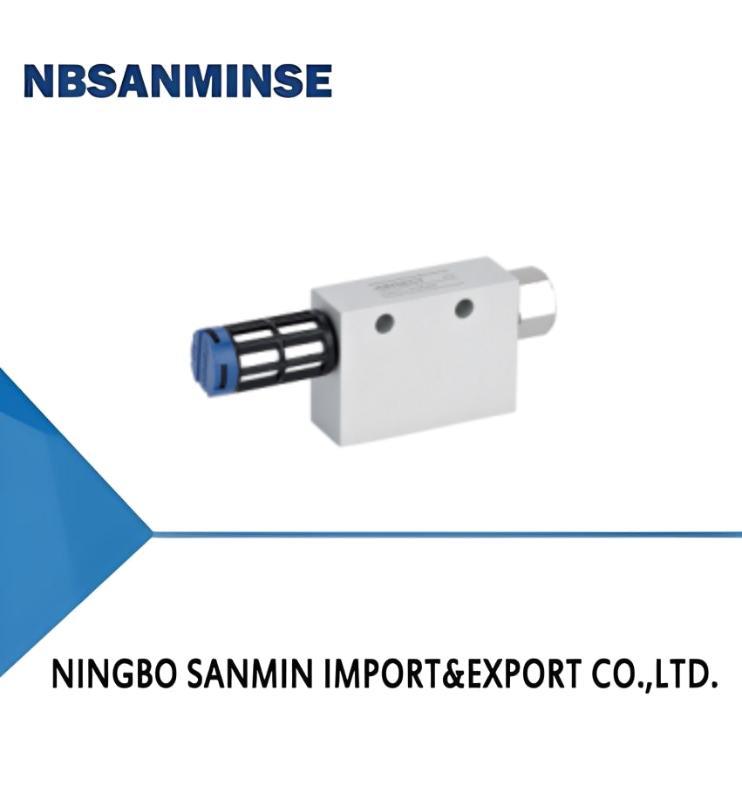

ACV Series Basic Vacuum Generator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	ACV-05HS

Detail Information
Rated Air Supply Pressure Bar:	5.0	Specification:	HS - High Vacuum Level Type（-87kPa）
Pressure Switch:	Nil - Without Pressure Switch	Max. Vacuum Flow NL/min:	7
Air Consumption NL/min:	13

Product Description

Features

◇ Single stage and compact structure

◇ High vacuum level type and large flow type for option

◇ Optional pressure switch

Advantages

◇ Long lifetime and easy maintenance

◇ Meeting all kinds of working conditions

◇ Cost-effective and simple pressure switch for detecting directly

Applications

◇ Widely used in all kinds of vacuum systems

◇ Suitable for various handling operations such as automotive,

metal sheet, wood, food and packaging, etc.

◇ High vacuum type and large flow type for different occasions

◇ Simple structure, the metal nozzle and body can be used in occasions

of complicated environment, it is easy to maintain and clean

Structure

◇ (1) Air supply port

◇ (2) Vacuum port

◇ (3) Silencer

◇ (4) Pressure switch

◇ (5) Adjusting nut

How to order

Selection

Model/Pressure switch

Nil-Without pressure switch

CK-With adjustable pressure switch

Nil-Without pressure switch

CK-With adjustable pressure switch

ACV-05HS

ACV-05HSCK

ACV-05L5

ACV-05LSCK

ACV-10HS

ACV-10HSCK

ACV-10LS

ACV-10LSCK

ACV-15HS

ACV-15HSCK

ACV-15L

ACV-15LSCK

ACV-20HS

ACV-20HSCK

ACV-20LS

ACV-20LSCK

ACV-25HS

ACV-25L5

ACV-30HS

ACV-30LS

Technical parameters

Model	Rated air supply pressure bar	Max. vacuum level -kPa	Max. vacuum flow NL/min	Air consumption NL/min	Noise Level dB(A)	Working temperature ℃	We without switch	ight(g) CK	Recommended h Airsupplyport (P)	ose dia. (mm) Vacuumport (V)
ACV-05HS	5.0	87	7	13	68	0~60	80	120	φ8	φ8
ACV-10HS	5.0	90	27	44	68	0~60	80	120	φ8	φ8
ACV-15HS	5.0	90	63	100	72	0~60	140	190	φ8	φ8
ACV-20HS	5.0	90	110	180	72	0~60	350	460	φ8	φ10
ACV-25HS	5.0	90	160	265	75	0~60	730	700	φ10	φ12
ACV-30HS	5.0	90	225	385	75	0~60	870	846	φ10	φ12
ACV-05LS	5.0	57	10	13	68	0~60	75	115	φ8	φ8
ACV-10LS	5.0	57	36	44	68	0~60	75	115	φ8	φ8
ACV-15LS	5.0	57	95	100	72	0~60	135	180	φ8	φ8
ACV-20LS	5.0	57	170	180	72	0~60	330	440	φ8	φ10
ACV-25LS	5.0	57	250	265	75	0~60	710	680	φ10	φ12
ACV-30LS	5.0	57	350	385	75	0~60	840	816	φ10	φ12

Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Airsupply pressure bar	Air consumption NL/min	0	10	20	30		40		50		60	70	80	Max. vacuum level -kPa
ACV-05HS	5.0	13	7.0	5.5	4.2	3.0		1.5		0.8		0.5	0.2	0.05	87
ACV-10HS	5.0	44	27.0	19.0	16.0	14.5		13.0		10.5		8.0	6.5	2.50	90
ACV-15HS	5.0	100	63.0	55.0	44.0	37.0		32.5		25.0		18.0	14.0	9.00	90
ACV-20HS	5.0	180	110.0	100.0	85.0	75.0		55.0		40.5		30.0	20.0	12.00	90
ACV-25HS	5.0	265	160.0	155.0	140.0	120.0		95.0		72.0		47.0	28.0	15.00	90
ACV-30HS	5.0	385	225.0	200.0	160.0	135.0		105.0		78.0		55.0	33.0	19.00	90
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Airsupply pressure bar	Air consumption NL/min	10	20	30		40		50		60		70	80	Max. vacuum level -kPa
ACV-05HS	5.0	13	0.68	1.38	2.77		4.32		6.02		8.25		9.44	11.82	87
ACV-10HS	5.0	44	0.20	0.49	0.82		1.25		1.74		2.32		2.95	4.00	90
ACV-15HS	5.0	100	0.08	0.19	0.32		0.48		0.69		0.92		1.38	1.95	90
ACV-20HS	5.0	180	0.04	0.10	0.17		0.23		0.34		0.49		0.71	0.92	90
ACV-25HS	5.0	265	0.03	0.07	0.11		0.17		0.24		0.35		0.49	0.75	90
ACV-30HS	5.0	385	0.03	0.06	0.09		0.14		0.20		0.27		0.41	0.63	90

Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air supply pressure bar	consumptio ir NL/min	10	20	30	40	50	55	Max. vacuum level -kPa	50	55	Max. vacuum level -kPa
ACV-05LS	5.0	13	0.31	0.98	1.89	3.17	5.12	6.70	57	1.8	0.7	57
ACV-10LS	5.0	44	0.12	0.28	0.51	0.83	1.32	1.40	57	6.5	2.5	57
ACV-15LS	5.0	100	0.45	0.10	0.15	0.26	0.42	0.56	57	15.5	5.5	57
ACV-20LS	5.0	180	0.03	0.06	0.11	0.14	0.25	0.34	57	35.5	7.5	57
ACV-25LS	5.0	265	0.02	0.05	0.08	0.12	0.18	0.30	57	60.0	36.0	57
ACV-30LS	5.0	385	0.02	0.04	0.06	0.09	0.13	0.22	57	85.0	41.0	57

Technical parameters-Pressure switch

Model

ACV-CK(Adjustable pressure switch)

Fluid

Set pressure range(-kPa)

20~53

Ambient temperature

0~60℃(Non-freezing)

Operating accuracy(-kPa)

Hysteresis(-kPa)

4.0~13.3

Operating voltage(V)

DC24Vbelow

Load current(A)

Effective length of lead wire(m)

Air circuit schematic diagram

Dimensions(mm)

Model/Size	L	H	W	G1	H1	L1	5	G2	L2	中d	Ld	Ld1	Ld2	中D	L3
ACV-05	85	16	33	Rp1/8	10	10	14	Rp1/8	8	4.5	4.5	14	20	15	30
ACV-10	85	16	33	Rp1/8	10	10	14	Rp1/8	8	4.5	4.5	14	20	15	30
ACV-15	129	20	35	Rp1/4	15	11	17	Rp1/4	10	4.5	5.0	20	25	19	51
ACV-20	161	30	40	Rp1/4	20	15	24	Rp3/8	13	6.0	7.0	28	32	28	56
ACV-20CK	161	30	50	Rp1/4	20	15	24	Rp3/8	13	6.0	7.0	28	32	28	56
ACV-25	236	40	60	Rp3/8	17	20	27	Rp1/2	16	6.0	5.5	20	50	40	119
ACV-30	257	40	60	Rp1/2	20	20	30	Rp3/4	20	6.0	5.5	33	50	40	119
Repair kits
Model of silencer			Connection thread				Color				Applicable vacuum generator
ZSB-X-G1M			G1/8Male thread				Blue				ACV-05HS,10HS
ZSB-F-G1M			G1/8Male thread				Red				ACV-05LS,10LS
ZSB-X-G2M			G1/4Male thread				Blue				ACV-15HS
ZSB-F-G2M			G1/4Male thread				Red				ACV-15LS
ZSB-X-G4M			G1/2Male thread				Black				ACV-20HS
ZSB-F-G4M			G1/2Male thread				Black				ACV-20LS
ZSA-G6M			G3/4Male thread				Black				ACV-25HS/LS,30HS/LS
