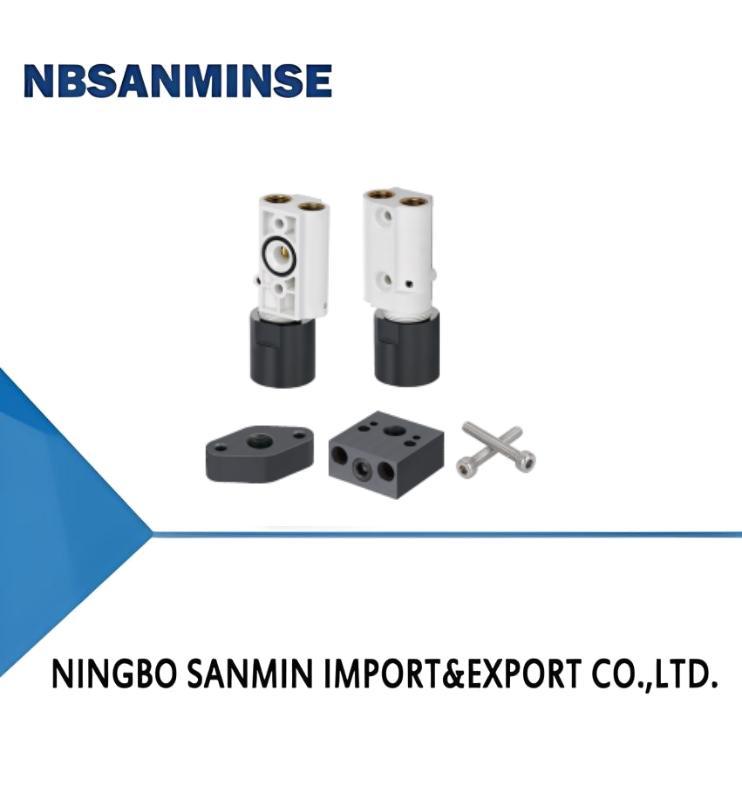

AEVC Series Vacuum Generator with Fast Blow-off

Contact Now

AEVC Series Vacuum Generator with Fast Blow-off

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	AEVC10

Detail Information
Mounting Thread:	G1F- G1/8 Female Thread	Nozzle Diameter:	10 - φ1.0mm
Mounting Type:	S- Vertical Mounting Block	Noise Level DB(A):	73.5
Max.vacuum Flow NL/min:	35

Product Description

Features

◇ Fast suction and blow-off

◇ Main body is made of plastic

◇ Suitable mounting bracket

◇ With built-in silencer

Advantages

◇ Short action cycle

◇ Small size, light weight, especially suitable for high speed working

◇ Could be fixed with suction cup and connector directly

◇ Reduce noise greatly

Applications

◇ Suitable for occasions where need blow-off function and short working

cycle, such as metal sheet processing, automotive industry, packaging

machine and industrial robot

Structure

◇ (1) Air supply port

◇ (2) Vacuum port

◇ (3) Release port

◇ (4) Silencer

◇ (5) Mounting hole

AEVC 10-S-G2F

① ② ③ ④

①Series

②Nozzle diameter

③Mounting type

④Mounting thread

AEVC

10-中1.0mm

Nil-Without mounting block

Nil-Without thread

5 -Vertical mounting block

G1F-G1/8female thread

L-Lateral mounting block

G2F-G1/4female thread

B -Oval vertical mounting block

Selection
Model/Mounting type
Nil-Without mounting block			s-Vertical mounting block					L-Lateralmounting block						B-Oval vertical mounting block
AEVC10			AEVC10-5-G2F					AEVC10-L-G2F						AEVC10-B-G1F AEVC10-B-G2F
Technical parameters
Model	Rated air supplypressure bar			Max. vacuum level -kPa			Max.vacuum flow NL/min				Air consumption NL/min				Noise level dB(A)		Weight g
AEVC10	4.5			85			35				48.5				73.5		64
Vacuumflow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min			0	10	20		30		40	50	60		70	80	Max. vacuum level -kPa
AEVC10	4.5	48.5			35.0	32.0	30.0		24.0		18.0	10.0	6.5		5.5	3.3	85
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min			10	20		30		40		50	60		70	80	Max. vacuum level -kPa
AEVC10	4.5	48.5			0.14	0.30		0.54		0.81		1.19	1.70		2.42	4.27	85
